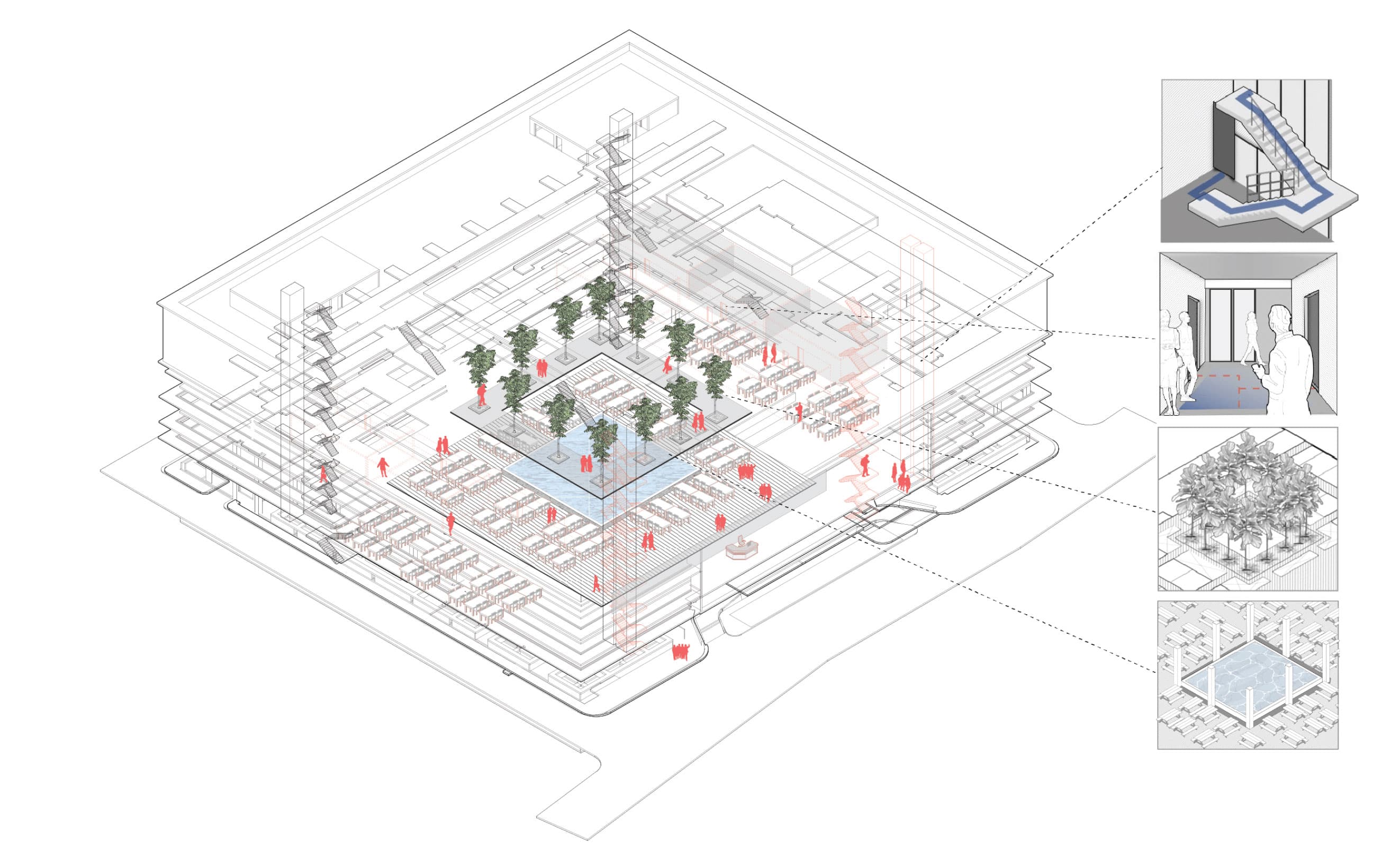

Similar to ELKU, the MUIC building exerts a lasting influence on its visitors. The central courtyard, featuring a captivating pool and a contemporary rendition of a traditional time house above it, is enhanced by the surrounding trees that stretch from the 2nd floor upwards. This forms an enticing backdrop that blurs the boundary between indoor and outdoor spaces, encouraging exploration and contemplation. The building incorporates diverse gray spaces, intelligently merged throughout to accommodate various activities and social connections. The ground floor accommodates cozy seating areas that seamlessly connect with nearby food stalls, serving as a hub for student interactions, from solitary moments to group gatherings. The allure of the building continues on the 2nd floor, offering a parallel charm and potential. However, this level faces challenges in terms of thermal and visual comfort, potentially impacting its functionality. Still, the building retains a welcoming atmosphere, steering clear of institutional sterility. This friendly ambiance is further enhanced by the skillful use of solid wood on interior surfaces like floors and walls, radiating a warm and organic aesthetic that resonates with entrants. Unlike the other two structures, the building's spacious layout adds to its approachable and amiable character, inviting all to partake in its distinctive appeal.

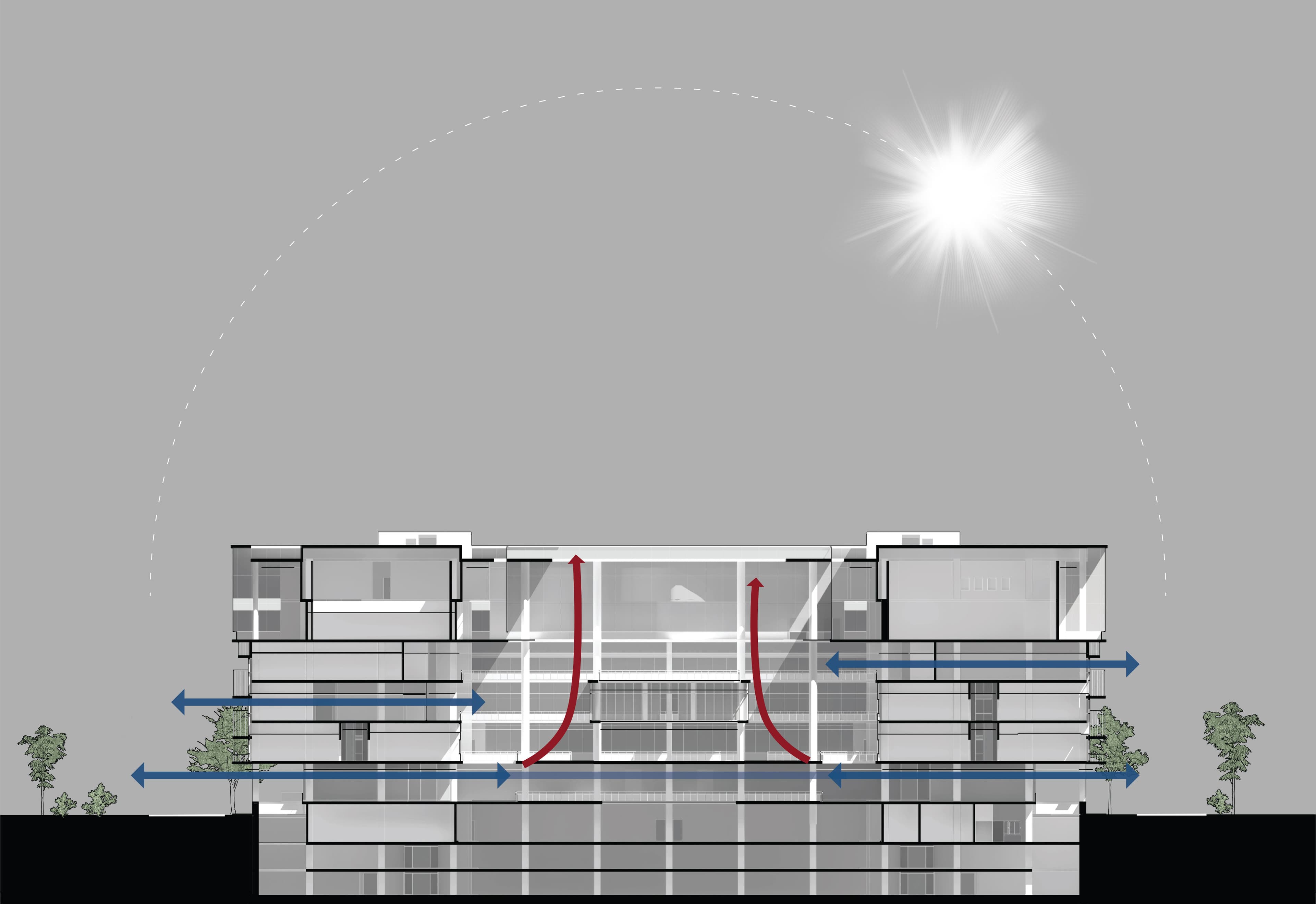

ventilation study

The MUIC building shares a comparable concept with the ELKU building. A special feature, however, lies in the partially exposed courtyard. The courtyard was originally intended to be shaded by extensive tree canopies, but is now exposed to direct sunlight through the presence of smaller tree canopies. This is particularly pronounced on the fourth and second floors, reinforced by glass facades with limited ventilation openings for cross ventilation. Outdoor spaces and extensive corridors allow for natural wind currents without the effects of solar heating. Although there is cross ventilation, its efficiency lags behind that of the SOAD building. The vertical chimney ventilation in the inner courtyard suffers from the negative heating effects caused by the glazing of the inner facade.
